C-Beam XL Actuator Kit

$100.63$194.16


This listing is for the mechanical components only and does NOT include Stepper Motors. Don’t forget to get 1x Nema23 Stepper Motors to suit the Actuator!

Standard Nema23 1.26N.mELEC-NEMA23-635-B

$24.90Add to cart

High Torque Nema23 2.45N.m

$39.50Add to cart




LCN: N/A SKU: KIT-ACTUATOR-CB-XL Category: Tags: , , , , , ,

Description


This listing is for the mechanical components only and does NOT include Stepper Motors. Don’t forget to get 1x Nema23 Stepper Motors to suit the Actuator!

Standard Nema23 1.26N.mELEC-NEMA23-635-B

$24.90Add to cart

High Torque Nema23 2.45N.m

$39.50Add to cart




The C-Beam XL Actuator Kit is a linear actuator driven by our ACME lead screw.

The kit is an easy way to get all the pieces needed for the build. Sizes available are 250mm, 500mm, 1000mm and 1500mm.


Assembly Manual Photo Link



The kit includes:

Product

SKU

QTY

688Z Ball Bearing – 8x16x5 BEAR-688Z 2
8mm Metric Lead Screw / ACME HARD-ACME-8-290/540/1040/1570 1
Anti-Backlash Nut Block HARD-ACME-8-ANTI-BLOCK 1
Lock Collar – 8mm HARD-COLL-8MM 2
6.35mm x 8mm Flexible Coupling HARD-COUP-635X8 1
C-Beam – 250mm / 500mm / 1000mm / 1500mm LR-C-S-250/500/1000/1500 1
C-Beam End Mount PLATE-C-END 2
C-Beam Gantry Plate – XL PLATE-C-GANTRY-XL 1
Eccentric Spacers – 8mm Hex – 6mm SHIM-ECCENTRIC-8-6 2
Metric Aluminum Spacers – 6mm SHIM-SPAC-6MM 2
M5 Low Profile Screws – 20mm SCREWS-M5-LP-20-1 10
M5 Low Profile Screws – 30mm SCREWS-M5-LP-30-1 4
M5 Low Profile Screws – 55mm SCREWS-M5-LP-55-1 2
Metric Aluminum Spacers – 3mm SHIM-SPAC-3MM 2
Metric Aluminum Spacers – 40mm SHIM-SPAC-40MM 2
Nylon Insert Lock Nut – 5mm HARD-NUT-LOCK-5MM 2

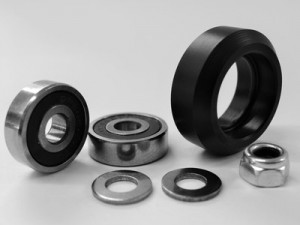

Solid V Wheel Kit WHEEL-SOLIDV-KIT 4

1000mm and 1500mm also include hardware to tension the lead screw

Tools required:

  • Allen keys
  • 8mm spanner/wrench

Note:

“C-Beam” is a trademark of Openbuilds. Recommended maximum speed for > 1000mm long 8mm lead screws is 400 RPM.
